Swing Clear Hinges - Accessible Environments

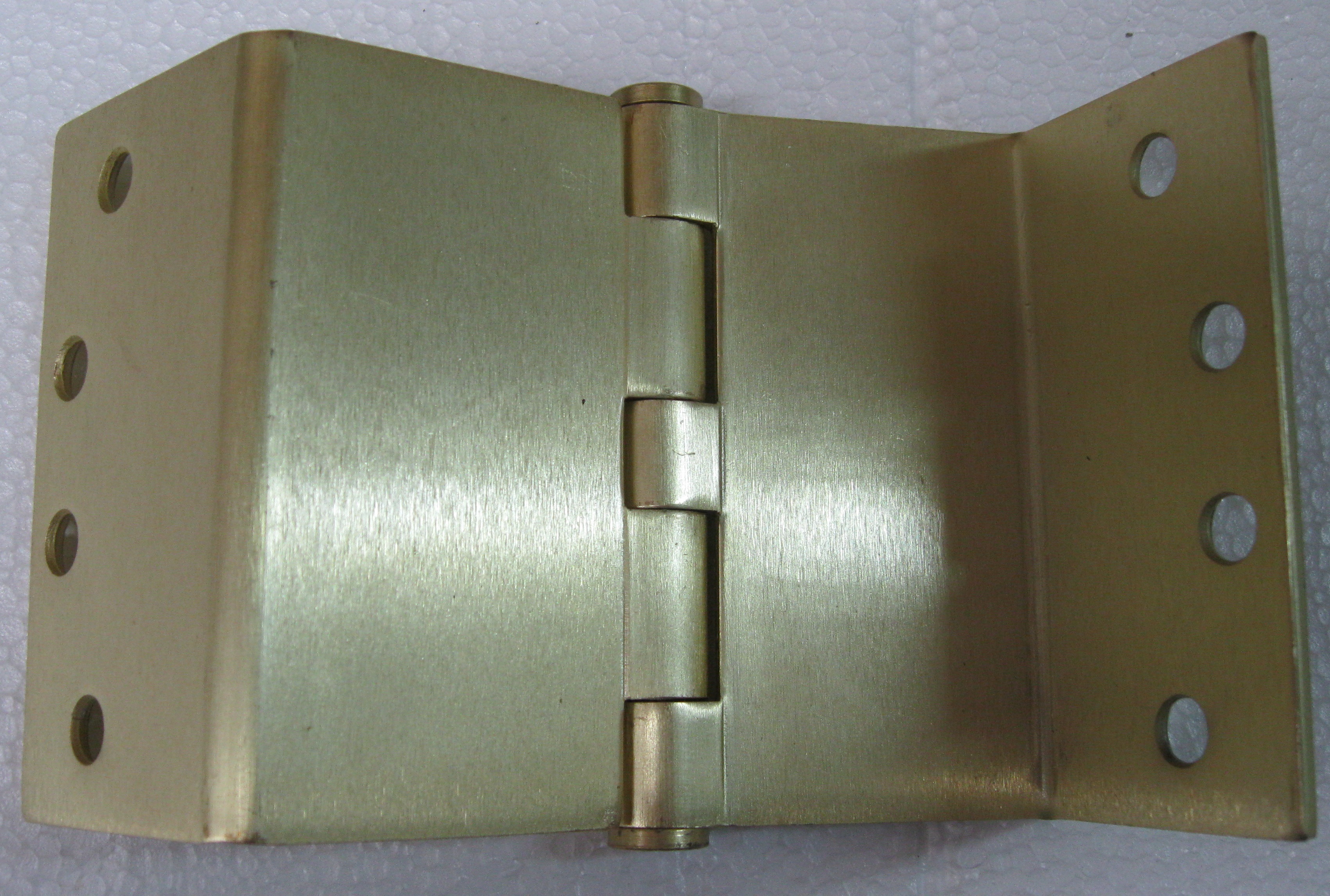

Note: 4-1/2" and 4" hinges will have (4) mounting holes in each side.

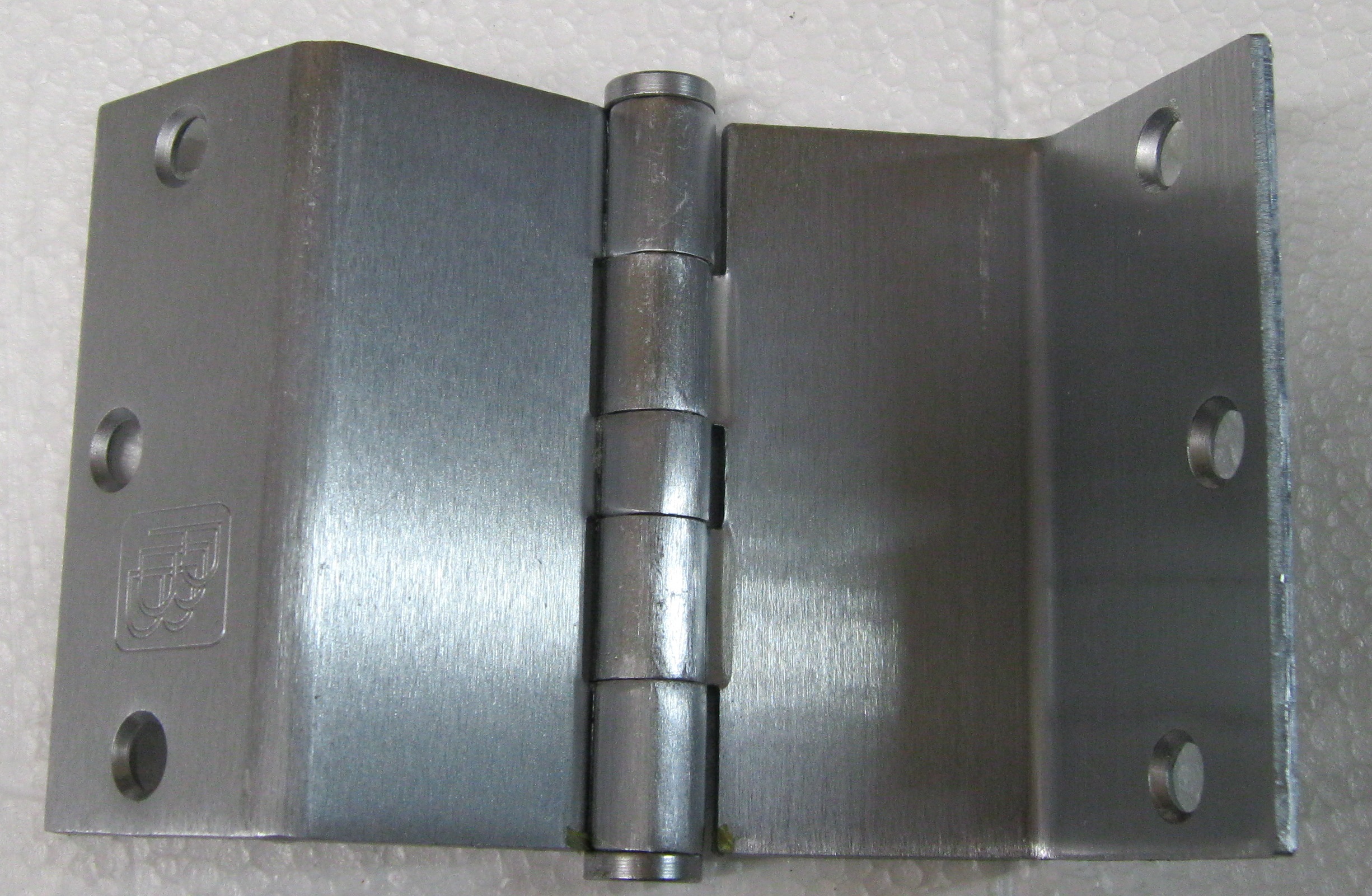

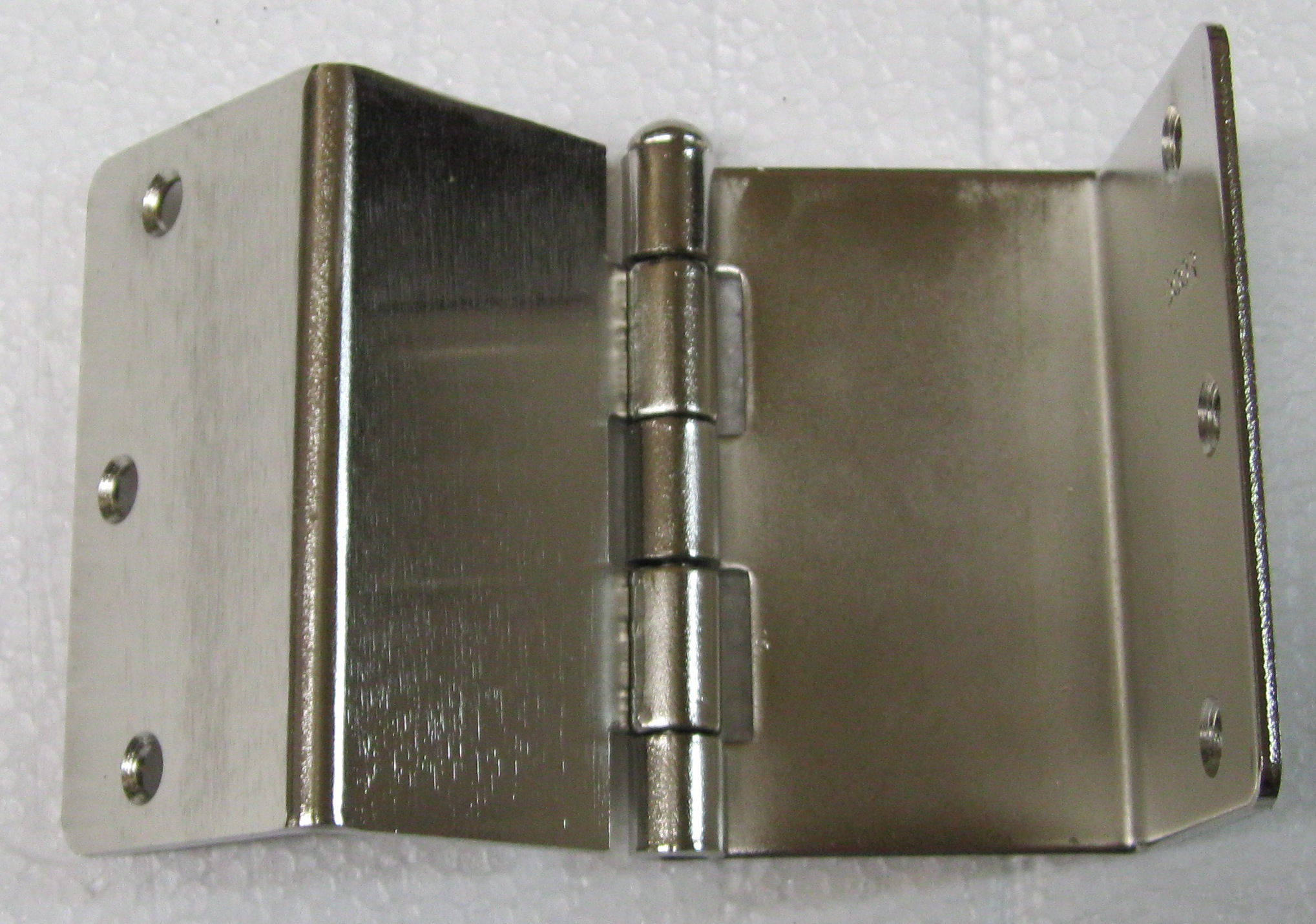

3-1/2" hinges will have (3) mounting holes in each side.

3-1/2" Light Duty Hinges (3) mounting holes in each side and rounded corners.

These hinges give you the extra clearance needed for wheelchairs and walkers. The hinge is designed to swing your door completely clear of the opening (see illustration). They are designed to replace your existing hinges and come in three sizes (3 1/2", 4", and 4 1/2") and many finishes including Paint Grade, Brushed Chrome, Brushed Brass, Bright Brass and Satin Black

USP Paint Grade US26D Brushed Chrome US4 Brushed Brass US3 Bright Brass Satin Black

How Do They Work?

What are the benefits?

Provides barrier-free access by adding 2" additional clearance to most doors
Ideal for narrow residential doors
Easily installed, uses same screws and holes
Decorative long lasting finishes such as bright brass, brushed brass, brushes chrome, and primed for paint.
ADA compliant

Product #	Description	Price
2006BR	3 1/2" x 3 1/2" Light Duty Brass Finish	$19.00 each
2006BL	3 1/2" x 3 1/2" Light Duty Black Finish	Discontinued
2006C	3 1/2" x 3 1/2" Light Duty Brushed Chrome	Discontinued
SC813.5 USP	3 1/2" x 3 1/2" Medium Duty Paint Grade	$28.00 each
SC813.5 US4	3 1/2" x 3 1/2" Medium Duty Brushed Brass	$30.00 each
SC813.5 U26D	3 1/2" x 3 1/2" Medium Duty Brushed Chrome	$30.00 each
SC813.5 US3	3 1/2" x 3 1/2" Medium Duty Bright Brass	$34.00 each
SC814 USP	4" x 4" Heavy Duty Paint Grade	$32.00 each
SC814 US26D	4" x 4" Heavy Duty Brushed Chrome	$36.00 each
SC814 US4	4" x 4" Heavy Duty Brushed Brass	$34.00 each
SC814 US3	4" x 4" Heavy Duty Bright Brass	$40.00 each
SC814.5 US26D	4 1/2" x 4 1/2" Heavy Duty Ball-Bearing Brushed Chrome	$78.00 each
* SC814.5 US3	4 1/2" x 4 1/2" Heavy Duty Ball-Bearing Bright Brass	$86.00 each
* SC814.5 US4	4 1/2" x 4 1/2" Heavy Duty Ball-Bearing Brushed Brass	$76.00 each

Note: * Denoted hinges are special order (please call for availability)

On all Domestic Hinge Orders over $100.00

Before Ordering:

1. Measure the length (top to bottom) of your existing hinges. They should be either 3 1/2", 4" or 4 1/2".

2. Verify that you have 2 1/4" clearance from the edge of the door. ( most door casings are 2 1/4" )

3. Choose the desired finish.

4. Count how many hinges you will need (priced per each).

Hinge Weight	Designed for Type of Door
Light Duty	Hollow Core Interior Door
Medium Duty	Solid Core Interior or Exterior Door
Heavy Duty	Extra Heavy Solid Core Interior or Exterior Doors
